Photovoltaic (PV) solar panels are devices that convert sunlight into electricity through a process called the photovoltaic effect. These panels are made up of many smaller units known as solar cells, typically made from semiconductor materials like silicon.
Here’s how they work step by step:
1. Absorption of Sunlight: Solar panels are designed to capture sunlight. When sunlight hits the surface of a solar panel, the energy from the light is absorbed by the semiconductor material (usually silicon) in the solar cells.
2. Generation of Electrical Charge: The energy from the sunlight excites electrons in the semiconductor, causing them to move. This movement of electrons creates a flow of electricity. The solar cells are specially designed with electric fields that direct the movement of these electrons.
3. Direct Current (DC) Electricity: The movement of electrons creates a flow of electricity in the form of direct current (DC), which is the type of electrical current generated by solar panels. However, most homes and businesses use alternating current (AC) electricity.
4. Conversion to AC: To make the DC electricity usable in your home or business, it passes through a solar inverter, which converts the DC electricity into AC electricity. This allows it to power devices, lights, appliances, and more.
5. Powering Your Home or Sending Power to the Grid: Once the electricity is converted to AC, it can either be used immediately to power your home or business or be stored in batteries for later use. If there’s excess electricity, it can be sent back to the electrical grid, where it can be used by others.
In Summary: Solar panels harness sunlight, convert it into electricity, and make it usable for your needs. This renewable energy source helps reduce dependence on fossil fuels, lowers electricity bills, and contributes to a cleaner, more sustainable future.
Hanwha QCell solar panels are our top pick right now for solar panel installations in Tucson and Southern Arizona. They offer great performance at a lower price point, making them an ideal "best" cost per kilowatt choice for most installations. Most QCell panels installed are manufactured in Dalton, Georgia, USA.
Key Features of Hanwha QCells Solar Panels:
1. Q.ANTUM Technology
Hanwha Q CELLS' Q.ANTUM technology is a proprietary innovation that enhances the efficiency of their solar panels. This technology improves light absorption and minimizes energy loss, even under low-light conditions. It ensures that more electricity is generated from the available sunlight, increasing the overall output of the panels.
Passivated Emitter and Rear Contact (PERC): Q.ANTUM technology includes PERC, which improves the electrical efficiency by capturing more sunlight and reducing the reflection of light on the cell's surface.
2. Anti-PID (Potential Induced Degradation) Technology
Q CELLS panels are designed with Anti-PID technology to protect the panels from potential-induced degradation, a common issue with solar panels exposed to high voltages, humidity, and temperature fluctuations. This feature ensures that the panels retain their performance over time, reducing power loss and maintaining the long-term efficiency of the system.
3. Enhanced Durability with Stronger Frames
Q CELLS uses stronger, corrosion-resistant frames made from anodized aluminum to enhance the structural integrity of their panels. This ensures they can withstand extreme weather conditions, including heavy snow, rain, and wind. Their durability makes them a great choice for areas with harsh climates.
4. Excellent Low-Light Performance
Thanks to their Q.ANTUM and PERC technologies, Q CELLS panels perform exceptionally well in low-light environments, such as overcast days or mornings/evenings when the sun is low on the horizon. This allows for more consistent energy generation throughout the day, even in suboptimal lighting conditions.
5. Temperature CoefficientThe temperature coefficient of a solar panel indicates how much power the panel loses as the temperature rises. Q CELLS panels have a low temperature coefficient, meaning they perform better in hot climates where other panels may experience more significant power losses due to heat.
Temperature Coefficient: Typically around -0.37%/°C, this allows Q CELLS panels to maintain performance even in high temperatures, making them suitable for sunny, hot regions.
6. Aesthetics and Design
Q CELLS panels are designed to be sleek and modern, making them an attractive addition to residential and commercial properties. The panels have a uniform, all-black appearance (in select models), which enhances the visual appeal of the installation, blending seamlessly with the roof and surrounding environment.
7. Certifications and Compliance
Hanwha Q CELLS panels comply with the highest international standards for safety and performance. They are certified by organizations such as:
- IEC 61215 (design qualification)
- IEC 61730 (safety qualification)
- UL 1703 (for North American markets)
- ISO 9001 (quality management)
These certifications ensure that Q CELLS panels meet rigorous quality and safety standards, giving homeowners and businesses confidence in the products' reliability and performance.
Conclusion:
Hanwha Q CELLS solar panels offer numerous benefits, including high efficiency, durability, and long-term performance, all backed by strong warranties. With innovative features like Q.ANTUM technology and Anti-PID technology, they maximize energy output, even under challenging conditions such as low light or high temperatures. Their robust build, sleek design, and cost-effectiveness make them an excellent choice for homeowners and businesses looking to invest in solar energy. Whether you live in a region with harsh weather conditions or simply want a high-performing solar solution, Hanwha Q CELLS solar panels provide an efficient, reliable, and sustainable option for your energy needs.

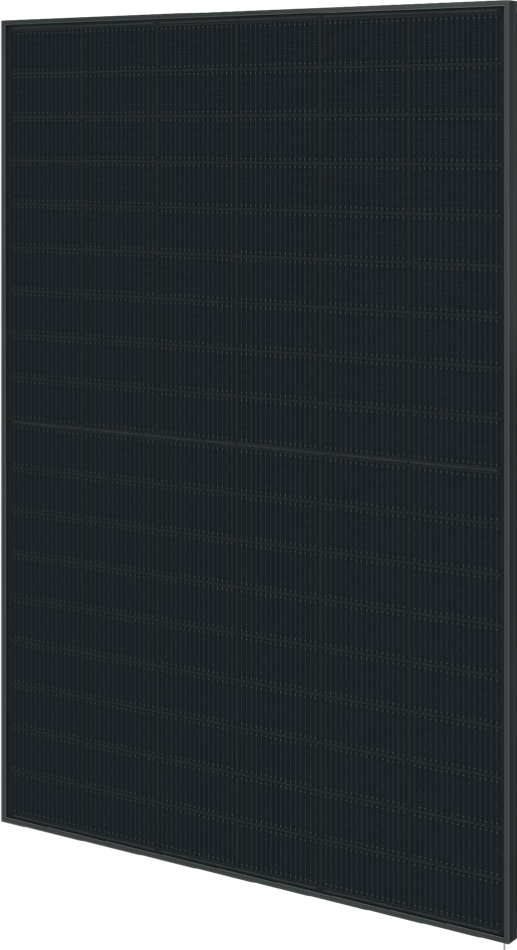

HD Hyundai Energy Solutions NF(BK) Series solar panels are a high-performance option for residential solar installations in Tucson and Southern Arizona. These premium panels use N-Type TOPCon solar cell technology to deliver excellent efficiency, strong performance in high temperatures, and dependable long-term energy production. Available in outputs including 435W, 440W, and 445W, the NF(BK) Series can reach module efficiencies as high as 22.79%, allowing homeowners to generate more electricity from a limited amount of roof space.
Key Features of HD Hyundai NF(BK) Series Solar Panels:
1. Advanced N-Type TOPCon Technology
The NF(BK) Series uses N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, an advancement over conventional P-Type solar-cell designs. TOPCon cells are engineered to reduce electrical losses and improve the conversion of sunlight into usable electricity. This helps Hyundai's NF(BK) panels achieve high efficiency while maintaining strong long-term performance.
2. Up to 22.79% Module Efficiency
Depending on the model, NF(BK) panels provide 435W to 445W of rated output with efficiencies ranging from 22.28% to 22.79%. Higher-efficiency panels can produce more power from the same amount of roof area, which can be particularly valuable on homes where available south- or west-facing roof space is limited.
3. Excellent Performance in Arizona Heat
One of the most important specifications when selecting solar panels for Tucson is their temperature coefficient. Solar panels naturally produce less power as cell temperatures increase, making heat performance especially important during Arizona summers. The Hyundai NF(BK) Series has a Pmax temperature coefficient of approximately -0.30%/°C, meaning its power output declines relatively slowly as panel temperatures rise. This makes the NF(BK) Series particularly well suited for hot, sunny climates such as Southern Arizona.
4. Strong Long-Term Performance
N-Type TOPCon technology is designed for excellent long-term reliability and low degradation. Hyundai's performance warranty specifies 99% of rated performance after the first year, followed by no more than 0.4 percentage points of annual degradation, with 87.4% of original rated performance guaranteed through year 30, subject to Hyundai's complete warranty terms.
5. 25-Year Product Warranty
HD Hyundai backs the NF(BK) Series with a 25-year product warranty covering materials and workmanship, along with its 30-year performance warranty. These long warranty periods provide homeowners with additional confidence when choosing equipment designed to remain on their roof and produce electricity for decades.
6. Sleek Full-Black Residential Design
Performance isn't the only consideration when selecting a solar panel. The NF(BK) Series is specifically designed for residential installations with a full-black appearance and black anodized aluminum frame. The darker, more uniform appearance creates a cleaner-looking solar array that can blend particularly well with darker roofing materials and modern home designs.
7. Bifacial Solar Cell Technology
The NF(BK) Series incorporates bifacial N-Type TOPCon cells, allowing the cells to generate electricity from light reaching both their front and rear surfaces. The amount of additional production available from the rear side depends heavily on installation conditions, roof surface, mounting configuration, and reflected light, so homeowners should not assume the same bifacial gains achievable with ground-mounted systems. Still, it is another advanced feature incorporated into Hyundai's latest-generation module design.
8. Built for Long-Term Reliability
Hyundai designed the NF(BK) Series for demanding outdoor environments, with an IP68-rated junction box, anodized aluminum frame, anti-reflective glass, and an operating temperature range from -40°F to 185°F (-40°C to 85°C). The modules are also certified to major photovoltaic safety and performance standards including UL 61215, UL 61730, IEC 61215, and IEC 61730.
9. Backed by HD Hyundai
Another advantage of choosing Hyundai solar panels is the manufacturer behind them. HD Hyundai Energy Solutions is part of the broader HD Hyundai organization, giving homeowners an alternative to smaller solar-panel manufacturers whose long-term presence can be more difficult to predict. For a product expected to remain on a roof for 25 to 30 years or longer, manufacturer strength is an important consideration alongside panel efficiency and price.
Conclusion:
The HD Hyundai NF(BK) Series is an excellent high-efficiency solar panel option for Tucson and Southern Arizona homeowners, particularly for those who value strong performance in high temperatures. With N-Type TOPCon technology, up to 22.79% efficiency, a -0.30%/°C temperature coefficient, full-black residential styling, a 25-year product warranty, and a 30-year performance warranty, these panels combine modern solar technology with strong long-term specifications.
For Arizona homeowners, the NF(BK) Series' low temperature coefficient is one of its most compelling advantages. Rooftop solar panels can become substantially hotter than the surrounding air during Tucson summers, so selecting a module that retains more of its rated output as temperatures increase can help support better real-world production during the hottest parts of the year. For homeowners looking for a high-efficiency, attractive, and well-warrantied solar panel from an established global manufacturer, the Hyundai NF(BK) Series is a strong option to consider.
The LONGi Hi-MO 5 LR5-54HPB Series is a high-quality residential solar panel that combines strong power output, proven monocrystalline technology, an attractive all-black appearance, and excellent long-term performance. Designed specifically for residential and commercial rooftop applications, the LR5-54HPB is available in power ratings from 400W to 420W, with module efficiency reaching 21.5%. Its compact 54-cell/108 half-cell format also makes it well suited for residential rooftops where installers need flexibility when laying out an array around roof hips, vents, and other obstructions.
Key Features of LONGi Hi-MO 5 LR5-54HPB Solar Panels:
1. Up to 420 Watts of Power
The Hi-MO 5 LR5-54HPB is available in 400W, 405W, 410W, 415W, and 420W configurations. The 420W model provides up to 21.5% module efficiency, allowing a residential solar system to produce substantial power without requiring oversized commercial-format panels. For homeowners with limited usable roof area, higher-wattage modules can help maximize the amount of solar capacity that fits within the available space.
2. High-Efficiency Monocrystalline Cell Technology
LONGi is one of the world's major manufacturers of monocrystalline silicon solar technology, and the Hi-MO 5 incorporates the company's M10 182mm monocrystalline wafer technology. The residential LR5-54HPB design brings technology developed for LONGi's larger utility-scale modules into a smaller format optimized for rooftop installations.
3. Half-Cell Design
The LR5-54HPB uses 108 half-cells arranged in a 6 × 18 configuration. Half-cell technology helps reduce internal electrical resistance and operating temperature while supporting strong module performance. LONGi specifically highlights the module's lower operating temperature as one of the advantages of the Hi-MO 5 design.
4. Good Performance in Arizona Heat
Heat performance is particularly important when choosing solar panels for Tucson and Southern Arizona because rooftop module temperatures can become substantially hotter than the surrounding air. The LR5-54HPB has a Pmax temperature coefficient of -0.34%/°C, meaning its maximum power output decreases by approximately 0.34% for each degree Celsius the cell temperature rises above standard test conditions. This provides solid high-temperature performance for residential installations in hot climates.
5. Positive Power Tolerance
LONGi specifies a 0% to +3% power tolerance for the LR5-54HPB. This means a module is designed to meet its nameplate power rating rather than testing below that rating within a negative manufacturing tolerance. It's a small specification that helps reinforce the panel's focus on consistent power output and manufacturing quality.
6. Strong Long-Term Energy Production
LONGi specifies less than 2% degradation during the first year followed by 0.55% annual degradation from years 2 through 25. Under the manufacturer's linear power warranty, the modules are warranted to retain 84.8% of their original rated power at year 25, providing homeowners with predictable long-term production expectations.
7. Attractive All-Black Appearance
The LR5-54HPB was developed with residential aesthetics in mind. LONGi describes the module as having a sleek all-black design, creating a clean and uniform appearance when installed across a home's roof. This can be particularly appealing to homeowners who want their solar array to complement the architecture of their home rather than becoming its most visually prominent feature.
8. Compact Residential Size
At approximately 67.8 × 44.6 inches (1722 × 1134 mm) and weighing about 45.9 pounds (20.8 kg), the LR5-54HPB provides substantial power in a manageable residential format. Its dimensions give installers additional flexibility when designing arrays on complicated roof surfaces compared with the much larger modules commonly used for utility-scale solar projects.
9. Designed for Long-Term Durability
The Hi-MO 5 uses 3.2mm coated tempered glass, an anodized aluminum-alloy frame, and an IP68-rated junction box. LONGi rates the module for a maximum front-side static load of 5,400 Pa and rear-side load of 2,400 Pa, and its specified operating-temperature range extends from -40°C to 85°C (-40°F to 185°F).
10. Backed by LONGi
LONGi is a large, established global solar manufacturer with extensive experience producing photovoltaic cells, wafers, and modules. Manufacturer strength matters when purchasing a product expected to remain on a home's roof for decades, particularly when considering long-term performance and warranty support. The U.S. Hi-MO 5 54-cell module was introduced specifically for residential and commercial distributed-generation applications.
Conclusion:
The LONGi Hi-MO 5 LR5-54HPB is a good all-around solar panel for Tucson and Southern Arizona homeowners who want dependable performance, attractive aesthetics, and strong value. With up to 420W of power, up to 21.5% efficiency, half-cell monocrystalline technology, a -0.34%/°C temperature coefficient, positive power tolerance, and a sleek all-black design, it provides a solid combination of performance and appearance for residential rooftop solar.
For Arizona homeowners, the Hi-MO 5 is particularly attractive as a well-rounded, cost-effective residential panel. While newer premium modules may offer higher efficiencies or even better temperature coefficients, the LR5-54HPB delivers proven technology and respectable performance in Arizona's demanding climate. For homeowners looking to reduce electricity purchased from the utility, protect themselves against rising electricity rates, and generate their own power for decades, the LONGi Hi-MO 5 is a dependable option worth considering.
